'Save converted libraries and
designs' Message

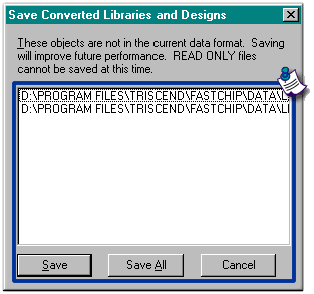

When you exit OrCAD Capture, the program displays the following
dialog asking if you want to save any open Triscend symbol libraries
in the current data format.

If you are using the OrCAD Lite Edition, you cannot successfully save
these libraries due to limitations imposed by the evaluation version.
The Triscend libraries exceed the size of libraries that you can save
with the evaluation version. Click Cancel to skip saving the library files.
If you are using a full version OrCAD, you may optionally select Save.
The Triscend schematic capture libraries for OrCAD were originally
created for OrCAD version 7.x. More current versions of OrCAD
can read these libraries without any issue.
In future versions of FastChip, version 2.2.0 and beyond, the OrCAD
libraries will be supplied in OrCAD 9.x format. There will be a separate
directory containing OrCAD 7.x format libraries.
